High Voltage IP66 Three Phase Hybrid Inverter 120V-800V 15kw 20kw 25kw 30kw Solar Inverter MPPT On/Off Grid 12kw Solar Inverter

Brand Name : 1stess

Model Number : TP12KH

Certification : CE, IEC

Place of Origin : China

MOQ : 1 piece

Price : To be negotiated

Payment Terms : L/C, T/T

Supply Ability : 2000 pieces per month

Delivery Time : 30 days

Packaging Details : carton box

Charging Mode : MPPT

Operating Temperature : -10°C To 50°C

Inverter Type : Off Grid inverter

Frequency : 50Hz/60Hz

Output Voltage : 120V-800V

Communication Interface : RS485/CAN/USB

Contact Now

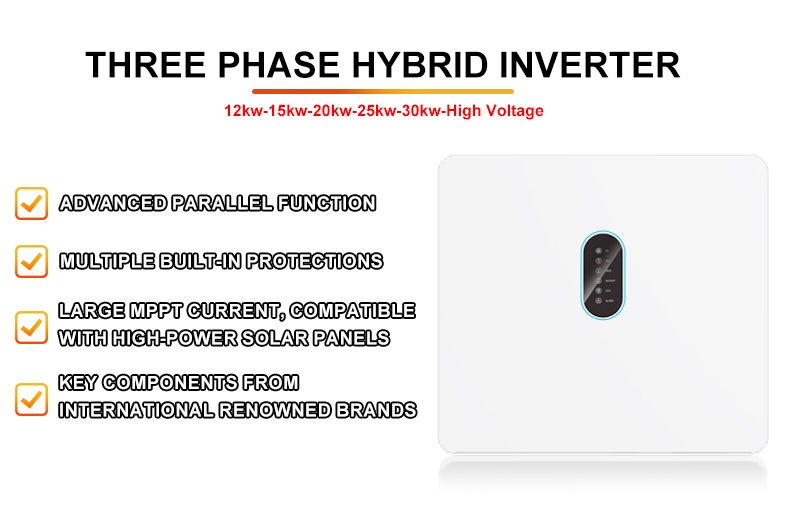

Product Features:

1.Maximum efficiency of 98.4% and battery efficiency of 98.0%

2.Advanced parallel function

3.Maximum battery charge/discharge current of 2*75A

4.Multiple built-in protections, with optional AFCl

5.Key components from international renowned brands

6.Large MPPT current, compatible with high-power solar panels

MODEL
TP12KH
TP15KH
TP20KH
TP25KH
TP30KH
Battery Voltage Range
120VDC-800VDC
Mounting Method
Wall Bracket
Battery Type
Lithium-ion/Lead-acid
Nos.of MPPT
2
3
Rated Grid Voltage
380V/400V/415V,3W+N+PE
Battery Voltage Range at Rated Power
230V-800V
285V-800V
380V-800V
190V-800V
230V-800V
Rated Grid Frequency
50Hz/60Hz
50Hz/60Hz
50Hz/60Hz
50Hz/60Hz
50Hz/60Hz
Transfer Time
<10ms (typical)
Nominal AC Output Power
12000W
15000W
20000W
25000W
30000W
Protection Degree
IP66
Max.AC Output Apparent Power
13200VA
16500VA
22000VA
27500VA
33000VA
Weight
45Kg
55Kg
Dimensions (W*H*D)
660mm*596mm*235mm
Warranty
5 Years/10 Years (Optional)
Display
Bluetooth & APP + LED, LCD (optional)

Technical Parameters:

High Voltage IP66 Three Phase Hybrid Inverter 120V-800V 15kw 20kw 25kw 30kw Solar Inverter MPPT On/Off Grid 12kw Solar InverterHigh Voltage IP66 Three Phase Hybrid Inverter 120V-800V 15kw 20kw 25kw 30kw Solar Inverter MPPT On/Off Grid 12kw Solar InverterHigh Voltage IP66 Three Phase Hybrid Inverter 120V-800V 15kw 20kw 25kw 30kw Solar Inverter MPPT On/Off Grid 12kw Solar InverterHigh Voltage IP66 Three Phase Hybrid Inverter 120V-800V 15kw 20kw 25kw 30kw Solar Inverter MPPT On/Off Grid 12kw Solar InverterHigh Voltage IP66 Three Phase Hybrid Inverter 120V-800V 15kw 20kw 25kw 30kw Solar Inverter MPPT On/Off Grid 12kw Solar InverterHigh Voltage IP66 Three Phase Hybrid Inverter 120V-800V 15kw 20kw 25kw 30kw Solar Inverter MPPT On/Off Grid 12kw Solar InverterHigh Voltage IP66 Three Phase Hybrid Inverter 120V-800V 15kw 20kw 25kw 30kw Solar Inverter MPPT On/Off Grid 12kw Solar Inverter

Core Advantages Summary:

High - Efficiency Power Conversion

With Eu. Efficiency (PV to AC) up to 98.4% and Max. Efficiency (BAT to AC) reaching 98.0%, the inverter minimizes energy loss during photovoltaic - to - AC and battery - to - AC conversion, maximizing overall energy utilization for higher power generation or storage efficiency.

Flexible PV Input Adaptation

It supports a wide PV input power range of 30kW–45kW and an MPPT voltage range of 160V–950V, with a maximum input current of 40A per MPPT channel.

There are 2–3 MPPT channels (varying by model), which enables compatibility with diverse PV array layouts. This design ensures efficient maximum power point tracking (MPPT) even in low - light or uneven irradiation conditions, thus boosting solar energy harvest.

Broad Energy Storage Compatibility

Compatible with Lithium - ion/Lead - acid batteries, the inverter supports a battery voltage range of 190V–800V and a maximum charge/discharge current of 60A (with charging power up to 30kW for select configurations). This versatility allows seamless integration with most residential or commercial energy storage systems.

Stable AC Output & Grid Adaptability

It delivers a nominal AC output power of 12kW–30kW (with a peak output of up to 33kVA for TP30KH) and supports both single - phase and three - phase configurations.

It has an adjustable grid voltage range (277V–520V) and frequency range (45Hz–65Hz), ensuring compliance with global grid standards for stable grid - connected or off - grid operation.

Reliable Emergency Backup

It provides a nominal backup output power of 12kW–30kW, with a peak apparent power of up to 45kVA (sustained for 10 seconds).

It achieves a transfer time of <10ms during grid outages, enabling “seamless” power switching to critical loads and minimizing disruption.

Comprehensive Safety Protections

It meets Class I protection standards and includes multiple safeguards: anti - islanding, AC/DC overcurrent/overvoltage, short - circuit, reverse polarity, and surge protection.

Optional features like insulation resistance detection and leakage current protection further enhance safety, aligning with international electrical safety regulations.

Harsh Environment Resilience

It can operate at altitudes up to 4000m (with derating above 2000m) and has an IP66 enclosure rating (dust - tight and protected against water jets).

It withstands a wide temperature range (-25℃–60℃, with derating above 45℃) and 0–100% relative humidity. Cooling options (natural cooling or smart fan cooling) ensure reliability in extreme climates.

Intelligent O&M & Easy Installation

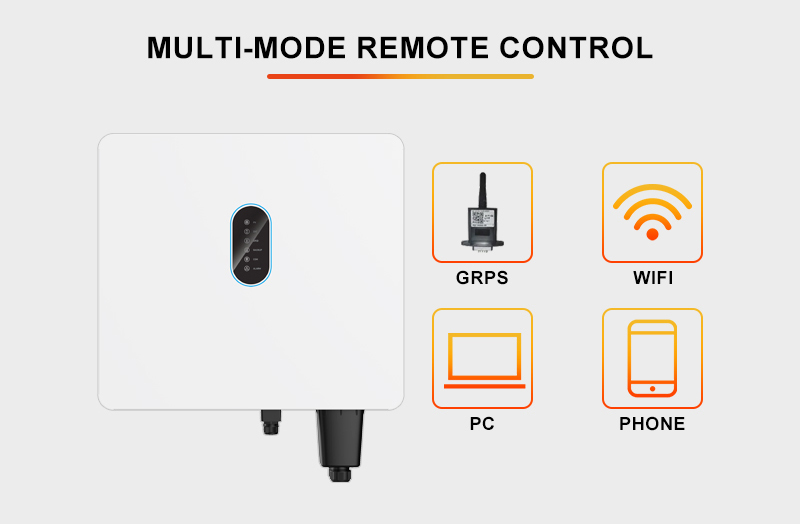

It enables local monitoring via Bluetooth, APP, and optional LED/LCD displays.

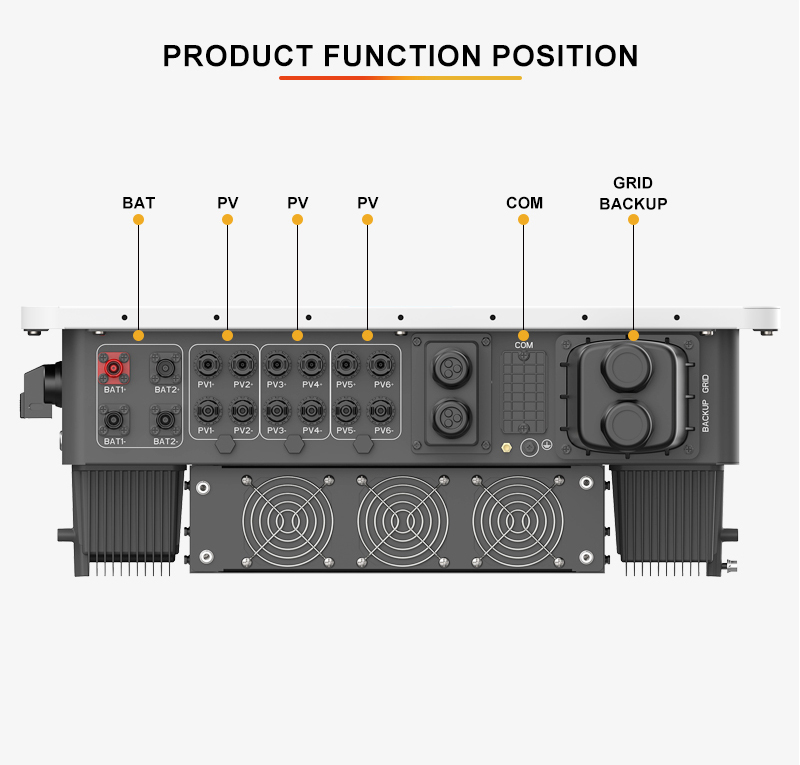

It offers rich communication interfaces (RS485/CAN for BMS, DRM/RS485 for meters, and optional Wi - Fi/LAN) for remote operation and maintenance.

It features a wall - bracket mounting design, compact dimensions (660mm×596mm×235mm), and is lightweight (45kg–55kg) with MC4/H4 PV connectors, simplifying on - site installation.

Global Certifications & Warranty

It is certified to international standards: IEC 62109 - 1/2 (safety), IEC/EN 61000 (EMC), VDE 4105 (grid compliance), and more, ensuring regulatory compliance in global markets.

It is backed by a 5 - year/10 - year (optional) warranty, reducing long - term operational risks and total cost of ownership.
